Pie chart

Pie charts can illustrate the distribution of different types of event data. Each slice represents the proportion of a specific value relative to the total. For example, a pie chart can show the breakdown of status codes in HTTP logs. This helps quickly identify the dominant types of status responses and assess the system’s health at a glance.

​

Prerequisites

• Create an Axiom account.
• Create a dataset in Axiom where you send your data.
• Send data to your Axiom dataset.
• Create an empty dashboard.

​

Create

1. Go to the Dashboards tab and open the dashboard to which you want to add the .
2. Click Add element in the top right corner.
3. Click from the list.
4. Choose one of the following:
   • Click Simple Query Builder to create your chart using a visual query builder. For more information, see Create chart using visual query builder.
   • Click Advanced Query Language to create your chart using the Axiom Processing Language (APL). Create a chart in the same way you create a chart in the APL query builder of the Query tab.
5. Optional: Configure the dashboard element.
6. Click Save.

The new element appears in your dashboard. At the bottom, click Save to save your changes to the dashboard.

​

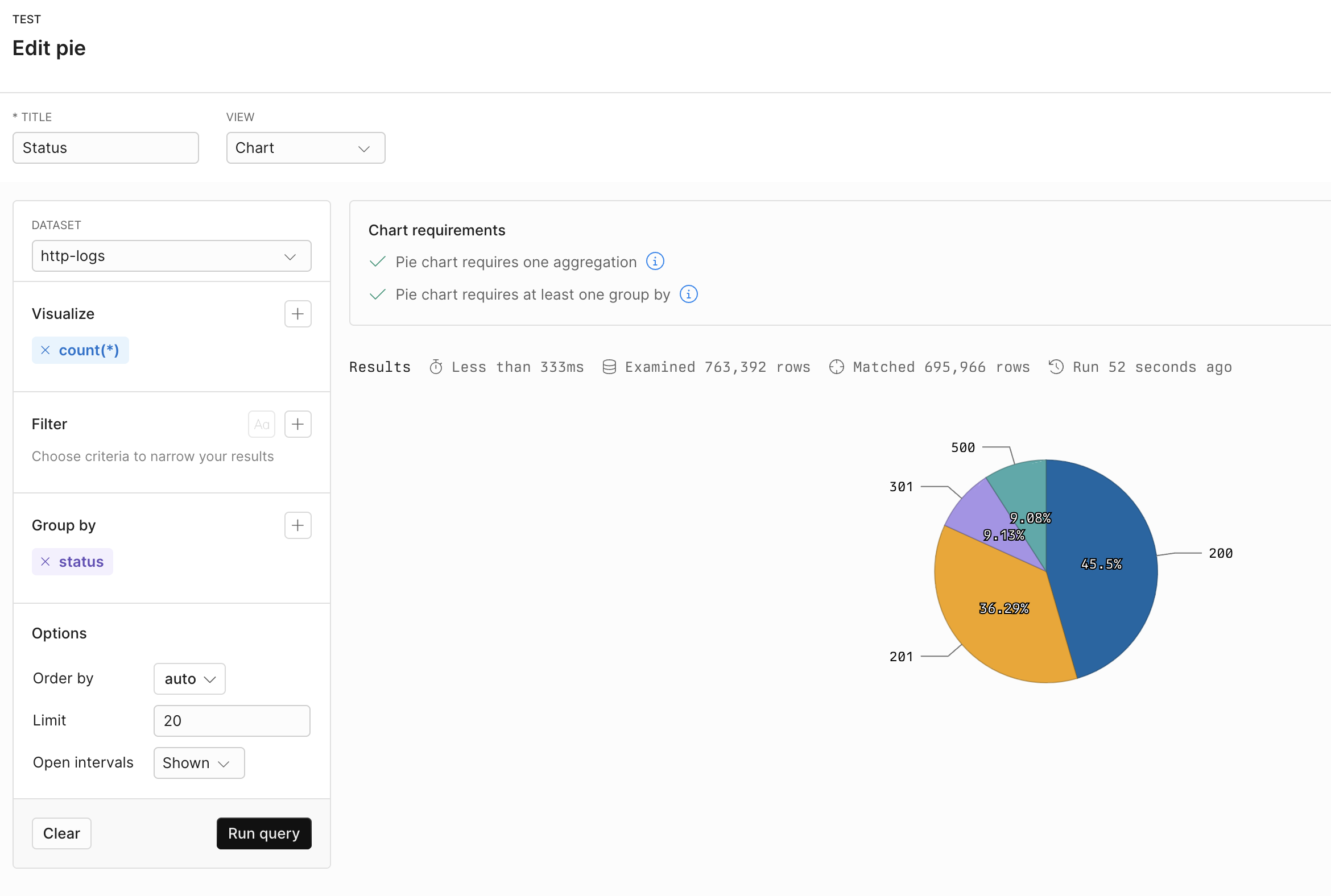

Example with Simple Query Builder

​

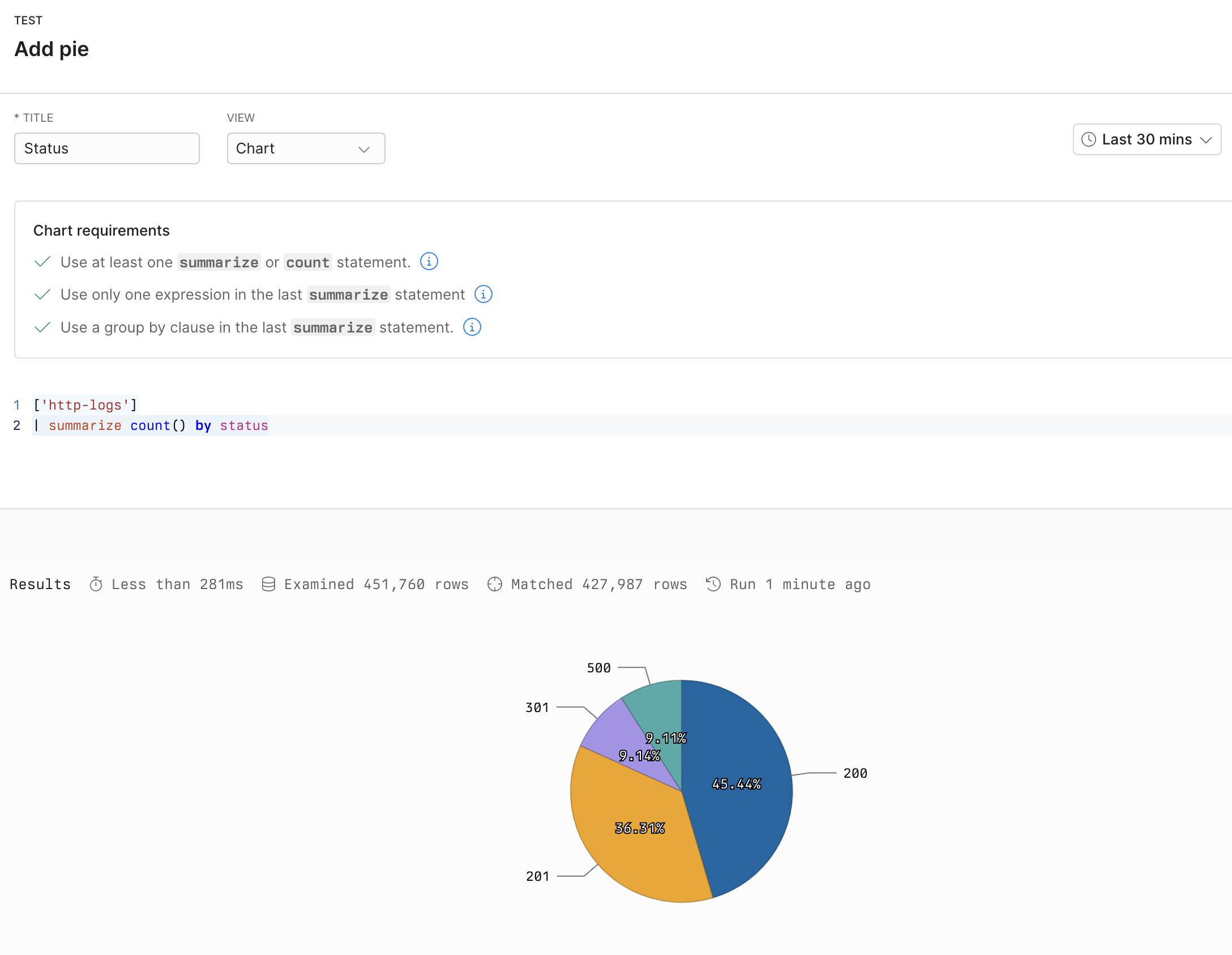

Example with Advanced Query Language

['http-logs']
| summarize count() by status
