Time series charts show the change in your data over time which can help identify infrastructure issues, spikes, or dips in the data. This can be a simple line chart, an area chart, or a bar chart. A time series chart might be used to show the change in the volume of log events, error rates, latency, or other time-sensitive data.

​
Prerequisites

​
Create

  1. Go to the Dashboards tab and open the dashboard to which you want to add the .
  2. Click Add element in the top right corner.
  3. Click from the list.
  4. Choose one of the following:
    • Click Builder to create your chart using a visual query builder. For more information, see Create chart using visual query builder.
    • Click APL to create your chart using the Axiom Processing Language (APL). Create a chart in the same way you create a chart in the APL query builder of the Query tab.
  5. Optional: Configure the dashboard element.
  6. Click Save.
The new element appears in your dashboard. At the bottom, click Save to save your changes to the dashboard.

​
Example with Builder

Time series example with Builder

​
Example with APL

['sample-http-logs']
| summarize count() by bin_auto(_time)

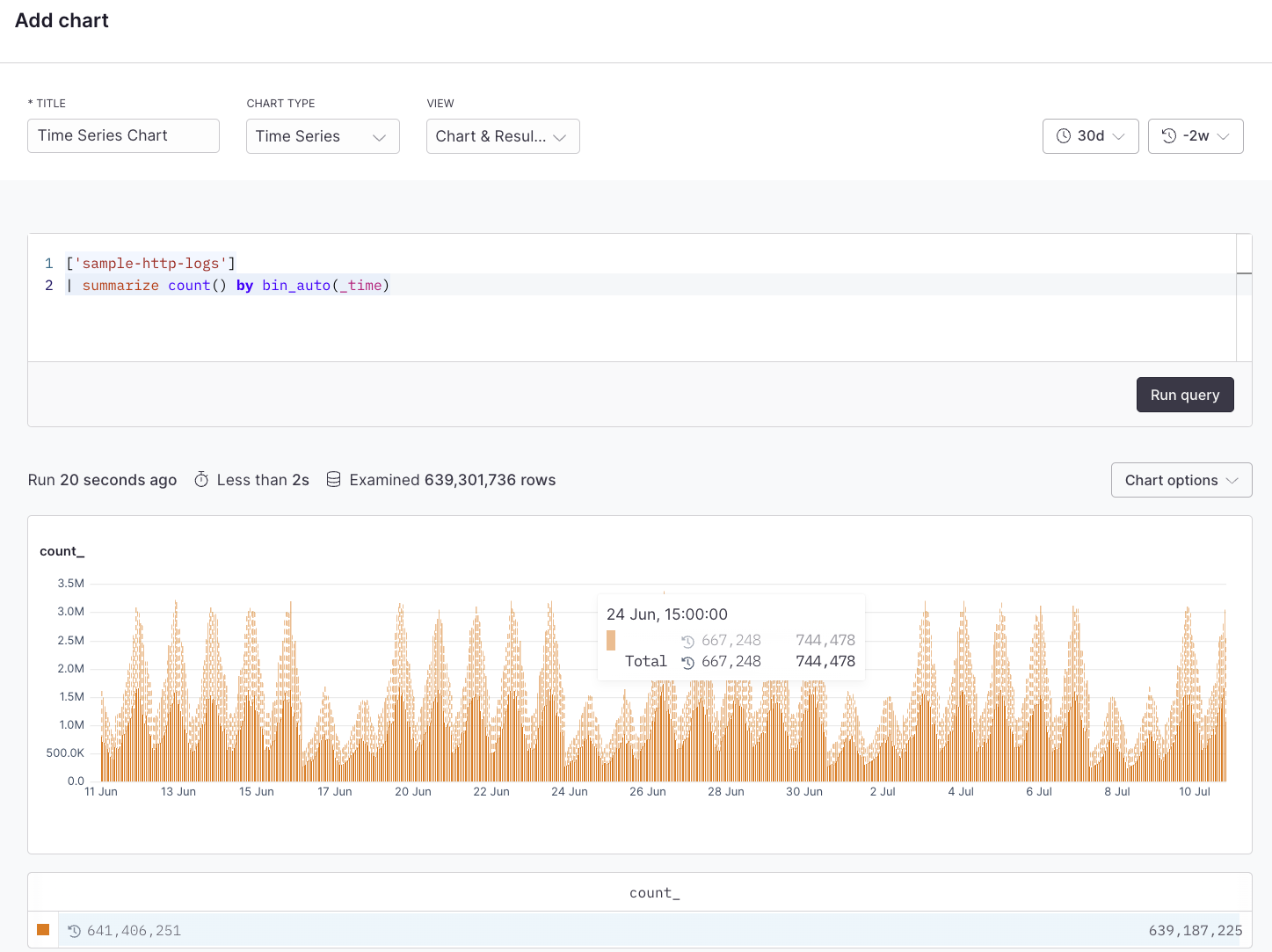

Time series example with APL
