Table

The table dashboard element displays a summary of any attributes from your metrics, logs, or traces in a sortable table format. Each row in the table could represent a different service, host, or other entity, with columns showing various attributes or metrics for that entity.

Prerequisites

• Create an Axiom account.
• Create a dataset in Axiom where you send your data.
• Send data to your Axiom dataset.
• Create an empty dashboard.

Create a dashboard element

1. Go to the Dashboards tab and open the dashboard to which you want to add the table.
2. Click Edit dashboard.
3. Click Add element in the top right corner.
4. Click Table from the list.
5. Choose one of the following:
   • Click Builder to create your chart using a visual query builder. For more information, see Create chart using visual query builder.
   • Click APL to create your chart using the Axiom Processing Language (APL). Create a chart in the same way you create a chart in the Editor of the Query tab.
6. Optional: Configure the dashboard element.
7. Click Save.

The new element appears in your dashboard. At the bottom, click Save to save your changes to the dashboard.

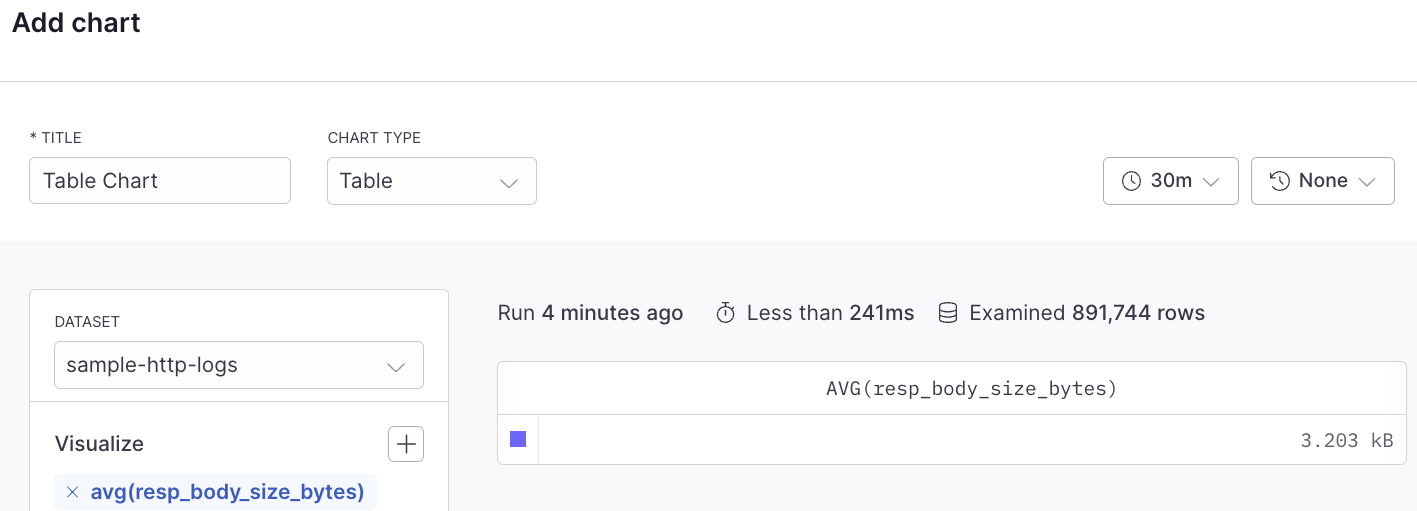

Example with Builder

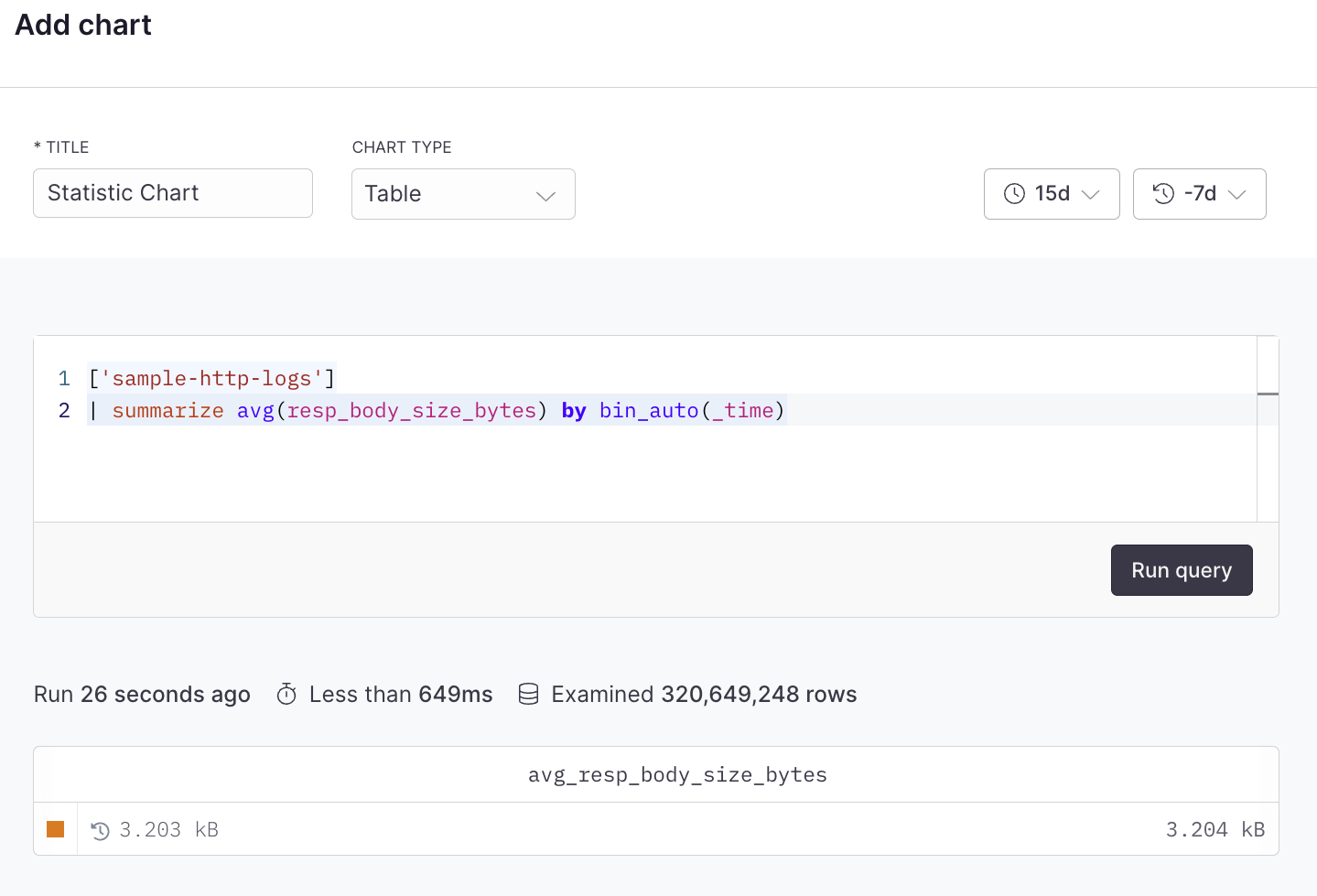

Example with APL

['sample-http-logs']
| summarize avg(resp_body_size_bytes) by bin_auto(_time)
